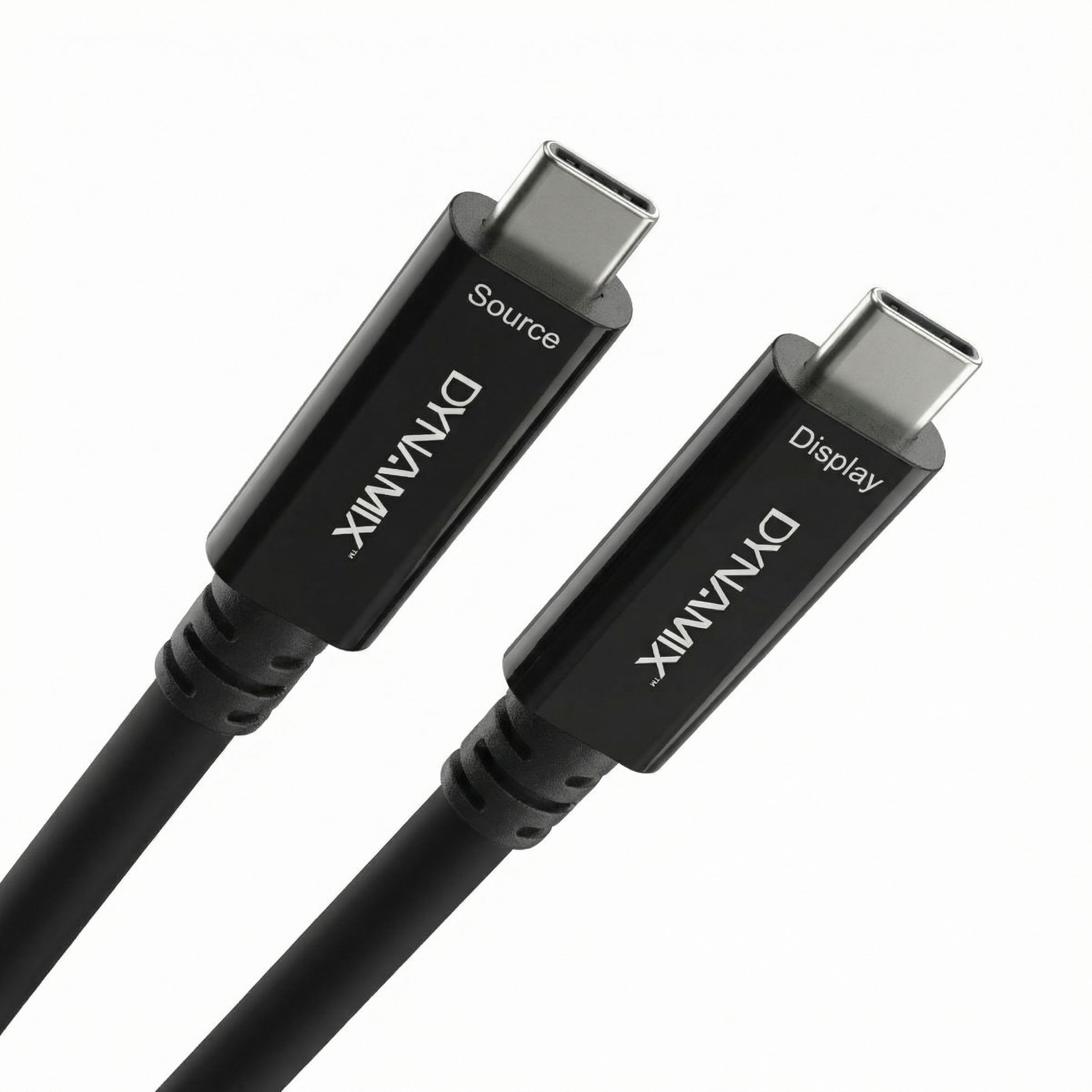

Picture of 10M USB 3.2 Full Featured Type C to C Hybrid Active Optical Cable
Picture of 10M USB 3.2 Full Featured Type C to C Hybrid Active Optical Cable Picture of 10M USB 3.2 Full Featured Type C to C Hybrid Active Optical Cable Picture of 10M USB 3.2 Full Featured Type C to C Hybrid Active Optical Cable Picture of 10M USB 3.2 Full Featured Type C to C Hybrid Active Optical Cable Picture of 10M USB 3.2 Full Featured Type C to C Hybrid Active Optical Cable Picture of 10M USB 3.2 Full Featured Type C to C Hybrid Active Optical Cable Picture of 10M USB 3.2 Full Featured Type C to C Hybrid Active Optical Cable Picture of 10M USB 3.2 Full Featured Type C to C Hybrid Active Optical Cable

10M USB 3.2 Full Featured Type C to C Hybrid Active Optical Cable

Model: C-U32-LLF-CC-10

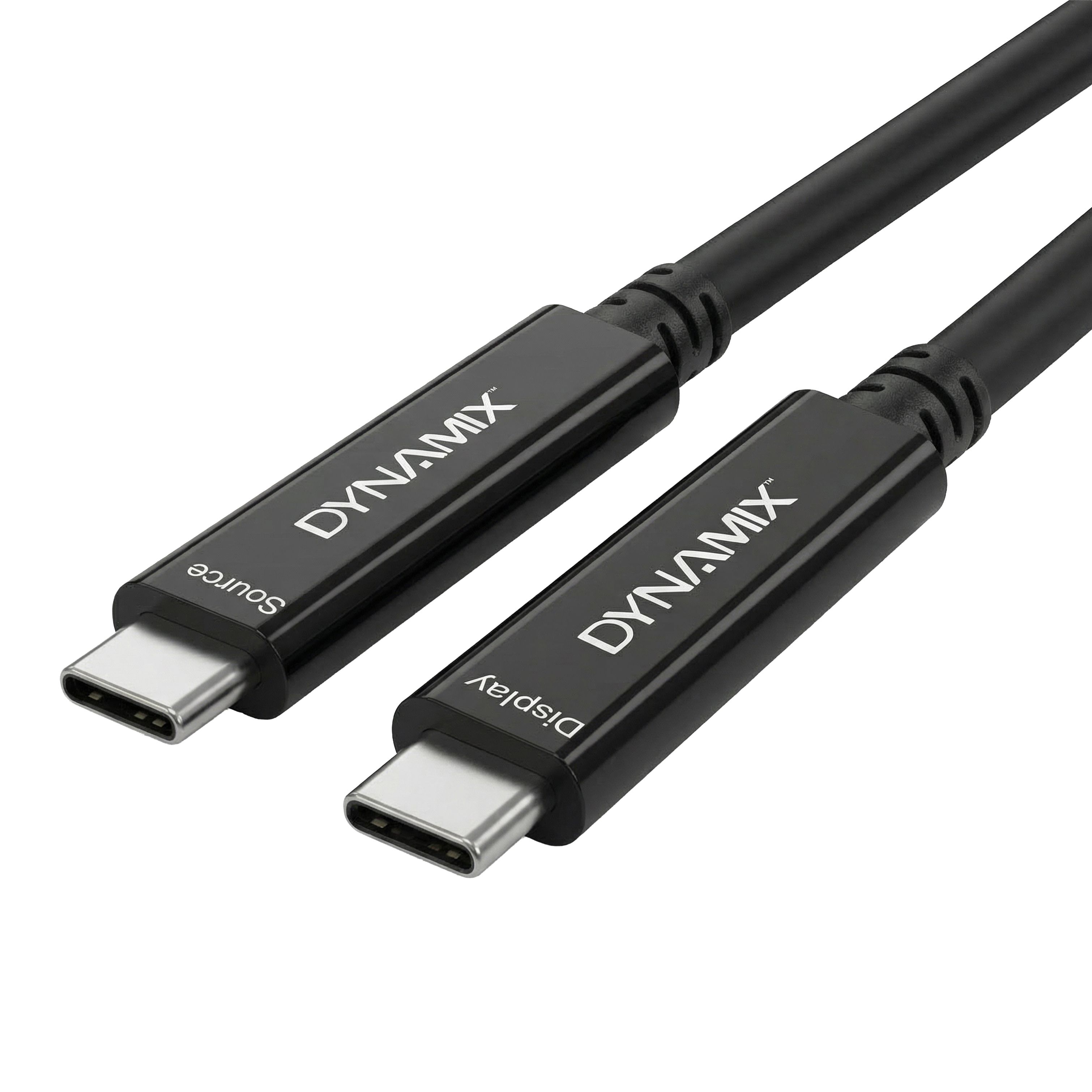

DYNAMIX USB-C Hybrid Active Optical Cable
10 METRE MODEL
HYBRID ACTIVE
OPTICAL
CABLE

Data, DisplayPort video & Power Delivery over one long-distance USB-C connection.

C-U32-LLF-CC-10
USB-C TO USB-C ACTIVE OPTICAL
10M
DATA
10Gbps
VIDEO
8K60
POWER
60W
LENGTH
10M
ONE CONNECTION. THREE FUNCTIONS.
DATA, VIDEO & POWER. SIMULTANEOUSLY.

The DYNAMIX C-U32-LLF-CC combines optical fibre for high-speed signal transmission with copper conductors for power. USB 3.2 Gen2, DisplayPort 1.4 Alt Mode & Power Delivery are carried through the same 10 metre USB-C connection.

PERFORMANCE AT A GLANCE.
DYNAMIX 8K 60Hz Hybrid Active Optical Cable
DYNAMIX 10Gbps and 60W Power Delivery
DYNAMIX interference-free performance
HYBRID OPTICAL CONSTRUCTION
LIGHT FOR DATA. COPPER FOR POWER.

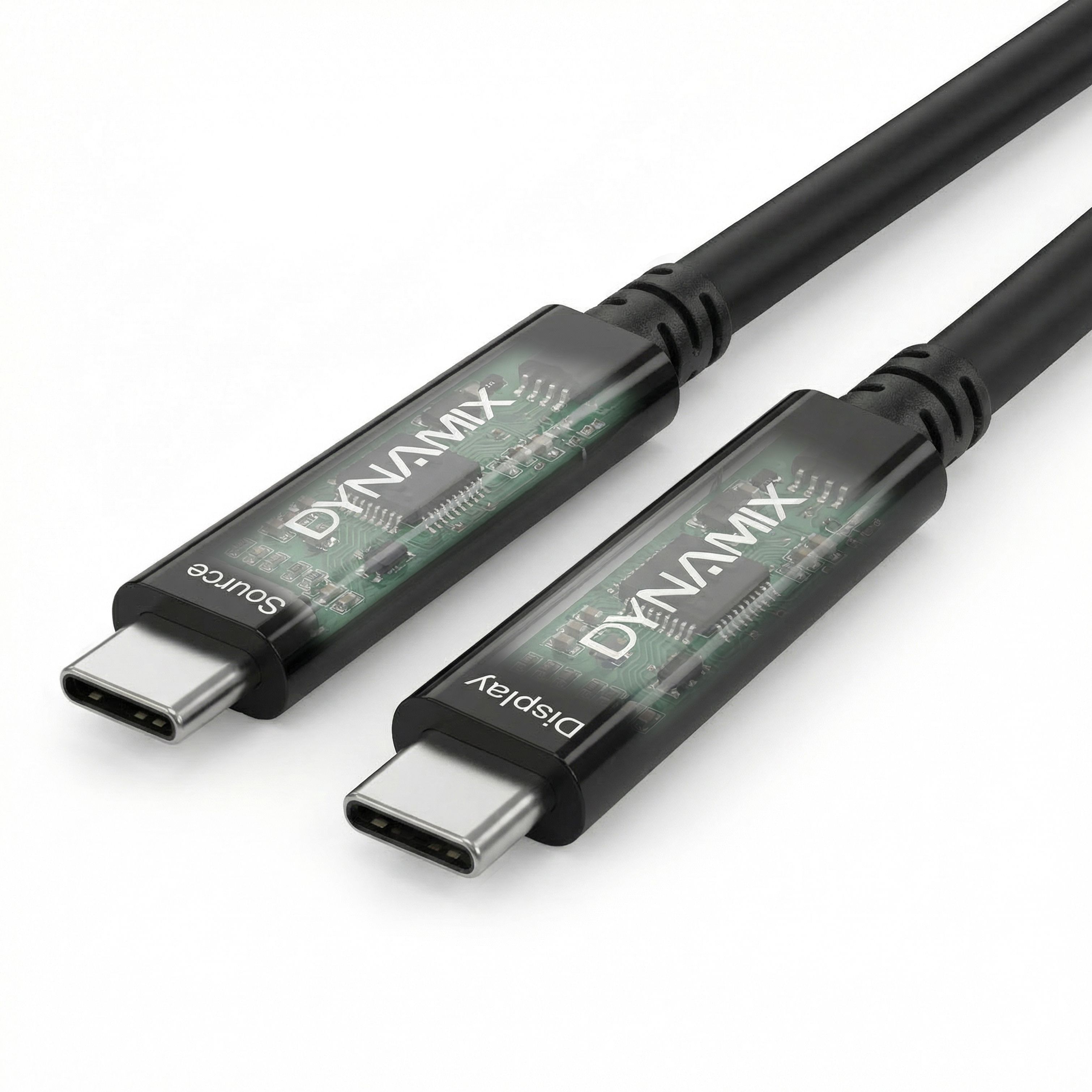

DYNAMIX Active Optical Cable electronics
5
OPTICAL FIBRE CORES
12
COPPER WIRES

Optical fibre carries high-speed signals while copper conductors maintain Power Delivery. This hybrid design enables high bandwidth across longer distances while providing high immunity to EMI & RFI.

6.5mm TPE Jacket Kevlar Filler High EMI / RFI Immunity
TECHNICAL OVERVIEW
BUILT FOR PERFORMANCE.
10Gbps
USB 3.2 Gen2
8K60
DisplayPort 1.4
60W
PD 3.0 • 20V / 3A
PLUG & PLAY
No drivers required
OPERATING MODES
MODE 01
2-LANE
DP1.4 + USB 3.2 Gen2
USB up to 10Gbps
MODE 02
4-LANE
DisplayPort + USB 2.0
USB up to 480Mbps
SPECIFICATIONS
C-U32-LLF-CC-10
Connector
USB-C Male to USB-C Male
Functionality
Data + Video + Power
Video
DisplayPort 1.4
Resolution
8K@60Hz
USB Data Rate
Up to 10Gbps
DP Bandwidth
8.1Gbps per lane
Power Delivery
60W • PD 3.0 • 20V / 3A
Power Supply
3.0–5.5V
Cable Diameter
6.5mm
Cable Structure
5-core fibre + 12 copper wires
Jacket
TPE — Black
Cable Filler
Kevlar
Bend Radius
20mm dynamic / 10mm static
Pressure
200N long term / 400N short term
Operating Temp.
-20°C to 80°C
AVAILABLE LENGTHS
CHOOSE YOUR DISTANCE.
CURRENT
10 METRES
C-U32-LLF-CC-10
60W PD
ALSO AVAILABLE
15 METRES →
C-U32-LLF-CC-15
40W PD
