Home > Networking Hardware > Switches Unmanaged > POE Fast Ethernet Switches > 4 Port 10/100 Fast Ethernet Unmanaged POE Switch w/ 35W 4x 100Mbps PoE ports

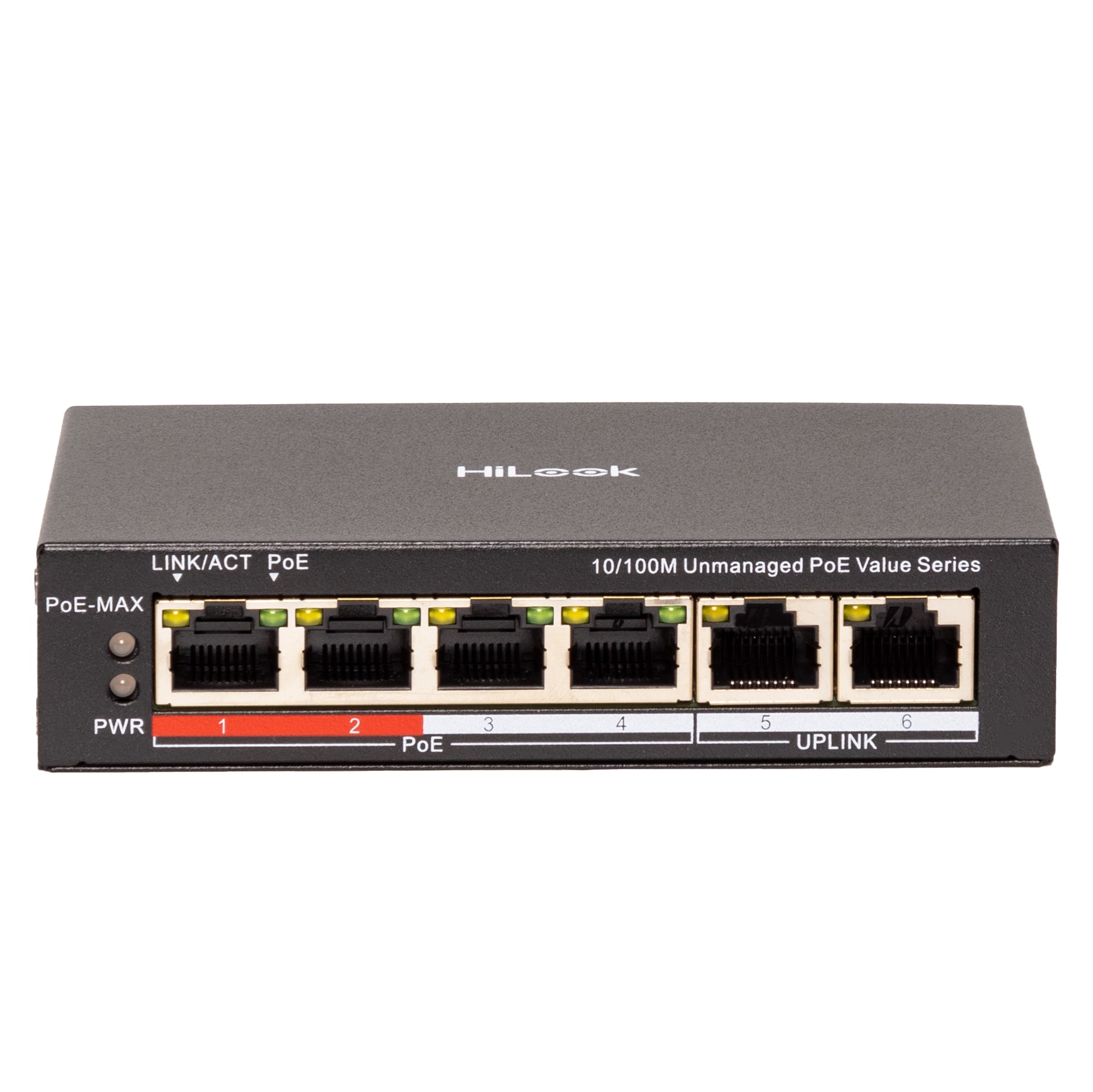

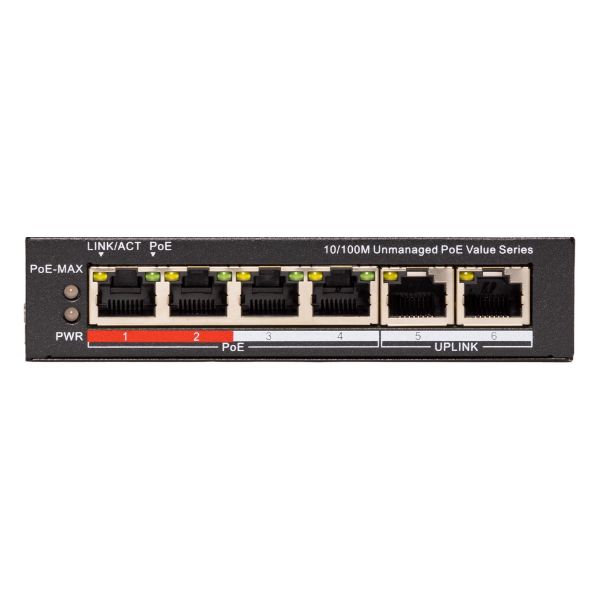

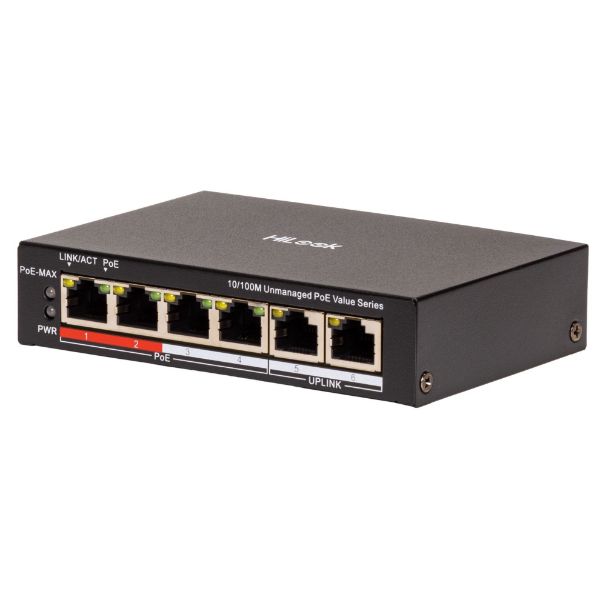

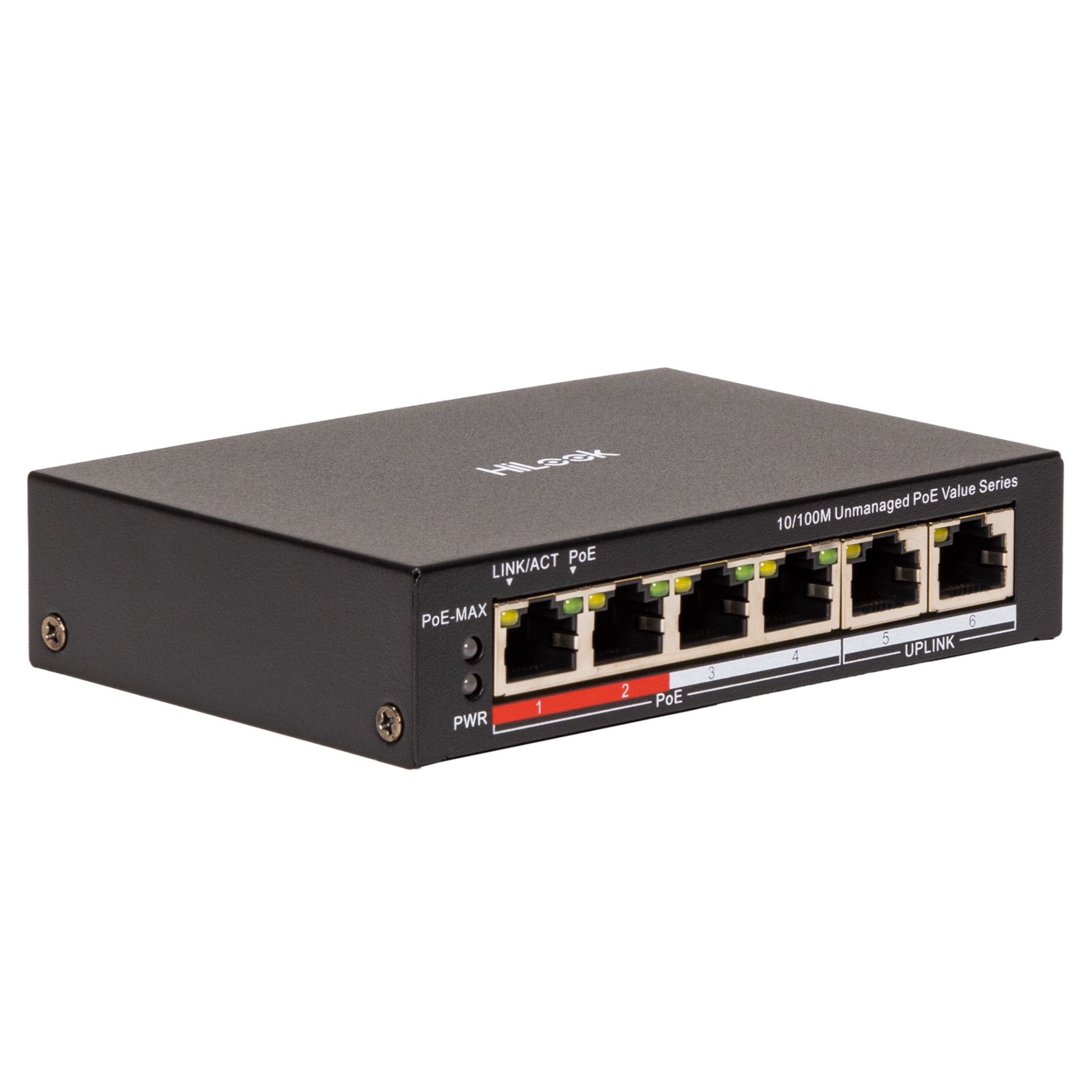

Picture of 4 Port 10/100 Fast Ethernet Unmanaged POE Switch w/ 35W 4x 100Mbps PoE ports
Picture of 4 Port 10/100 Fast Ethernet Unmanaged POE Switch w/ 35W 4x 100Mbps PoE ports Picture of 4 Port 10/100 Fast Ethernet Unmanaged POE Switch w/ 35W 4x 100Mbps PoE ports Picture of 4 Port 10/100 Fast Ethernet Unmanaged POE Switch w/ 35W 4x 100Mbps PoE ports Picture of 4 Port 10/100 Fast Ethernet Unmanaged POE Switch w/ 35W 4x 100Mbps PoE ports

4 Port 10/100 Fast Ethernet Unmanaged POE Switch w/ 35W 4x 100Mbps PoE ports

Model: NS-0106P-45
Compact PoE Networking
NS-0106P-45(B)
4-Port Fast Ethernet
Unmanaged PoE Switch
A compact Layer 2 PoE switch built for stable network access, reliable power delivery and CCTV-ready deployment. With four PoE ports, two uplink ports and long-range support, it provides a practical solution for surveillance and network installations.
4+2
Ports Total
45 W
PoE Budget
300 m
Extend Mode

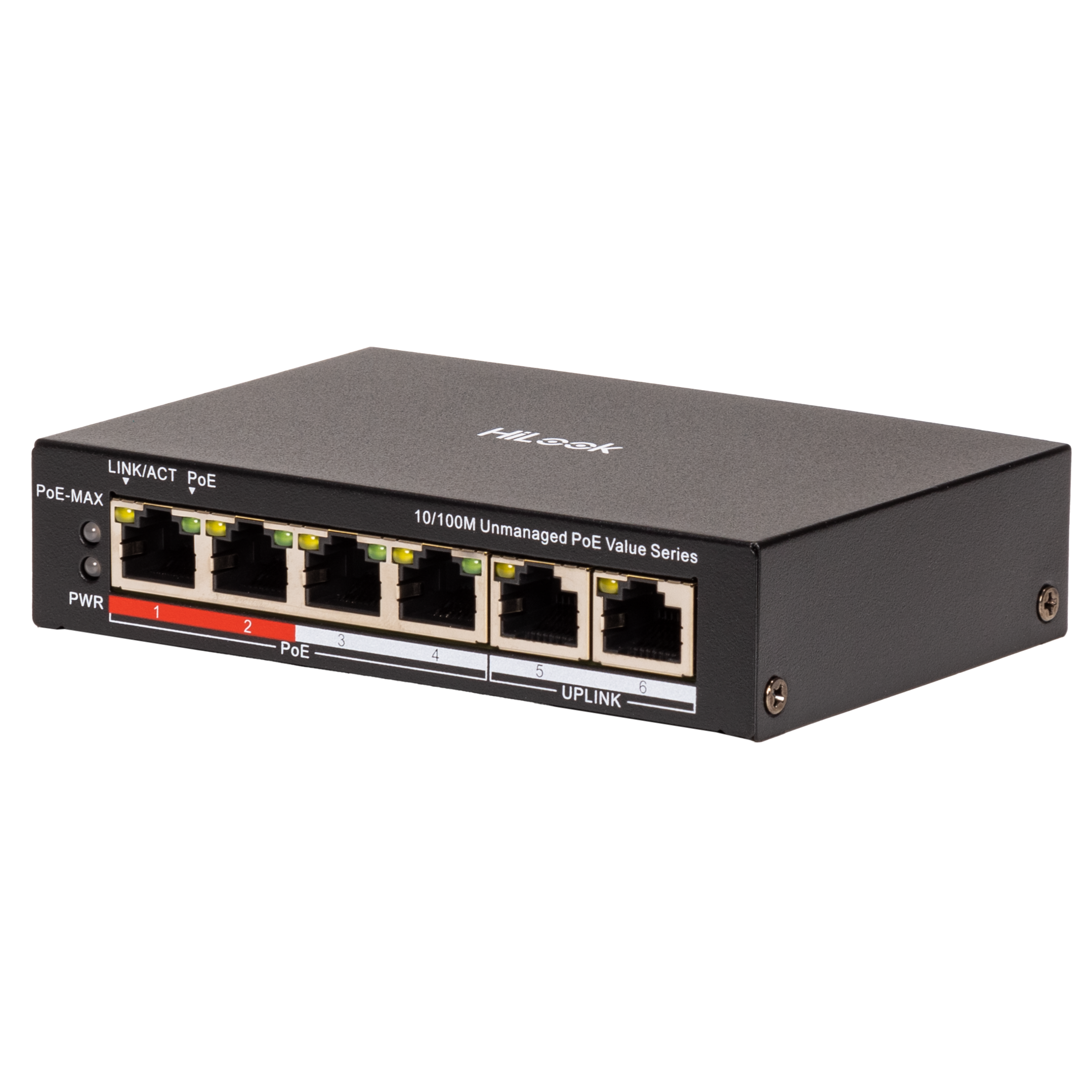

NS-0106P-45(B) PoE Switch
01
4 × PoE Ports
Power and connect compatible devices through four 10/100 Mbps PoE ports.
02
2 × Uplink Ports
Two dedicated RJ45 uplink ports support flexible CCTV network connectivity.
03
6 kV Protection
Integrated surge protection improves reliability in demanding environments.
04
Up to 300 m
Ports 1–4 support Extend mode for longer transmission distances.
Deployment
Built for CCTV Networks
Dual uplink ports and long-range transmission make the switch well suited to compact surveillance networks and installations requiring extended camera cable runs.

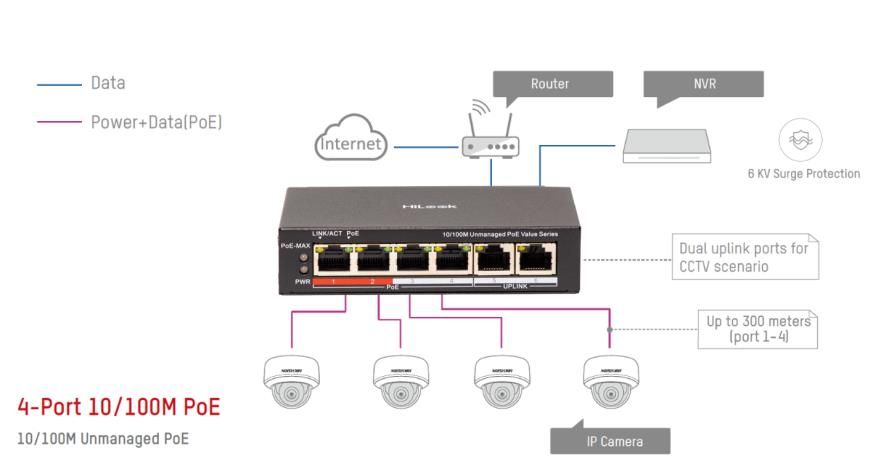

PoE CCTV network application diagram
PoE Performance
30 W
Maximum Per Port
IEEE 802.3af / 802.3at support with a total PoE power budget of 45 W.
Fast Facts
●  Metal housing
●  Fan-free design
●  Desk mounted
●  54 V DC, 0.92 A
300 m
Long-Range Transmission
Extend Mode
Use the rear DIP switch to enable network transmission of up to 300 metres through PoE ports 1–4. Performance may vary depending on camera model and cable condition.
Physical Interface
Front & Rear Connectivity

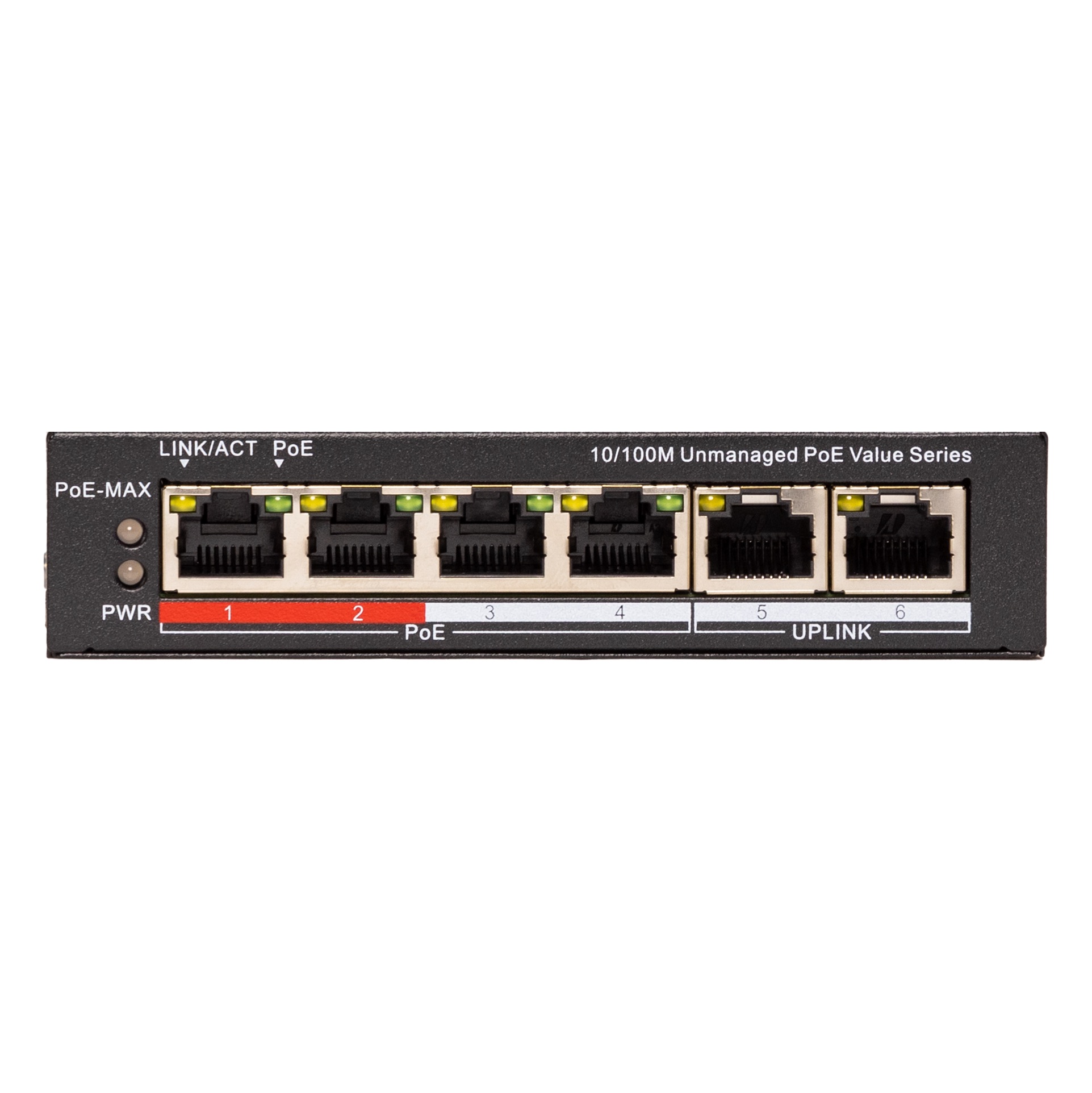

Front Panel

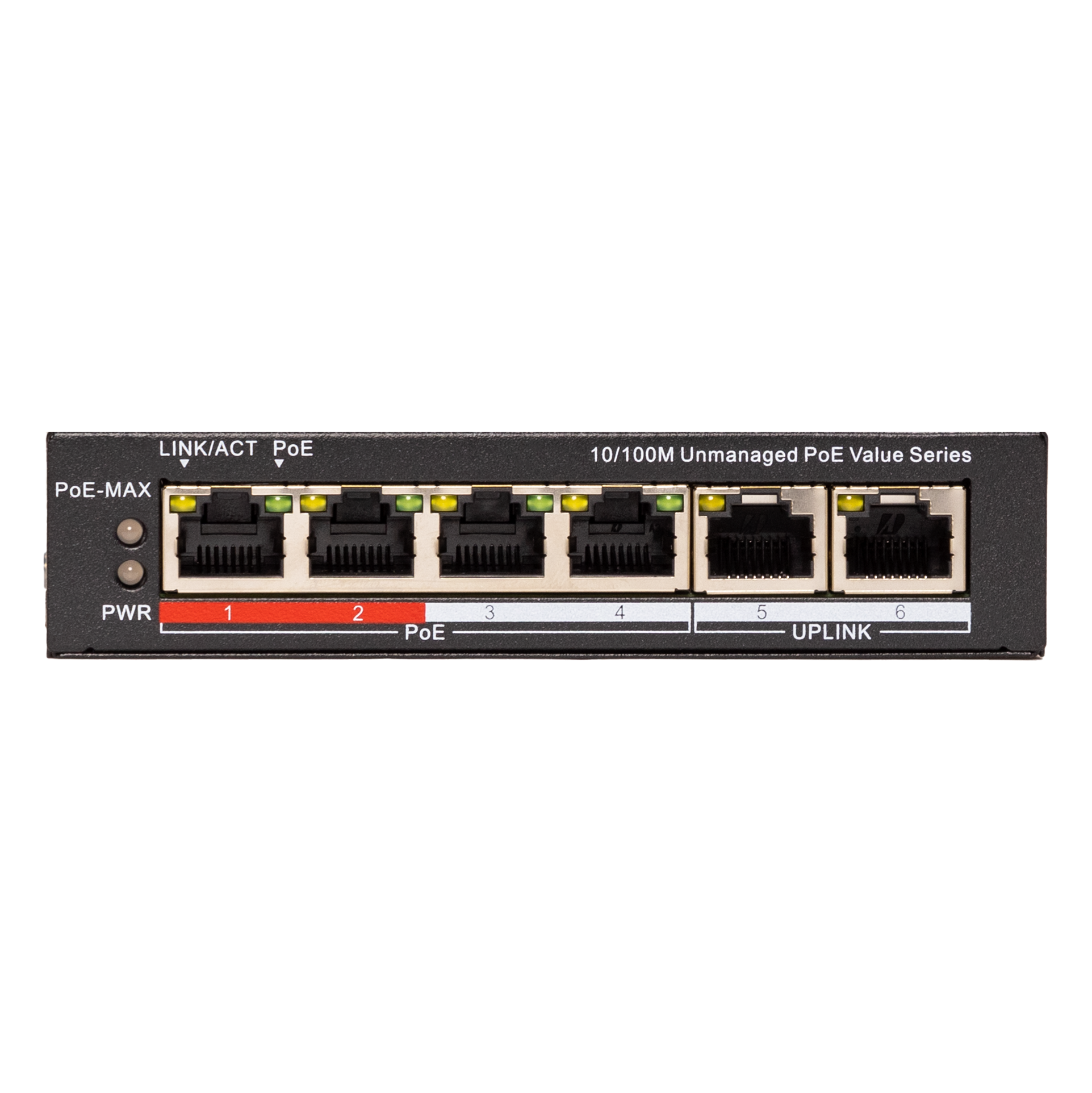

NS-0106P-45(B) Front Panel

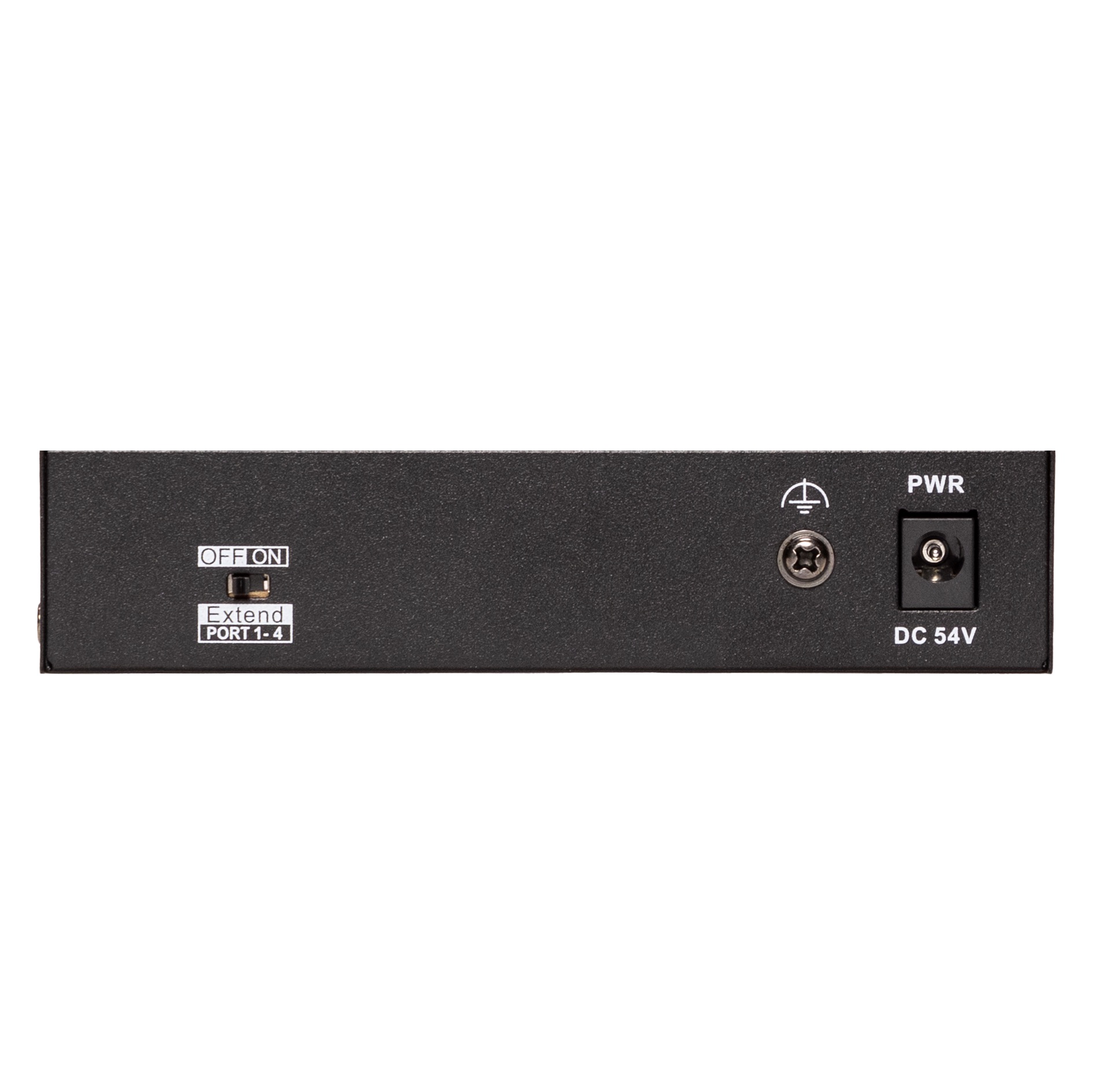

Rear Panel

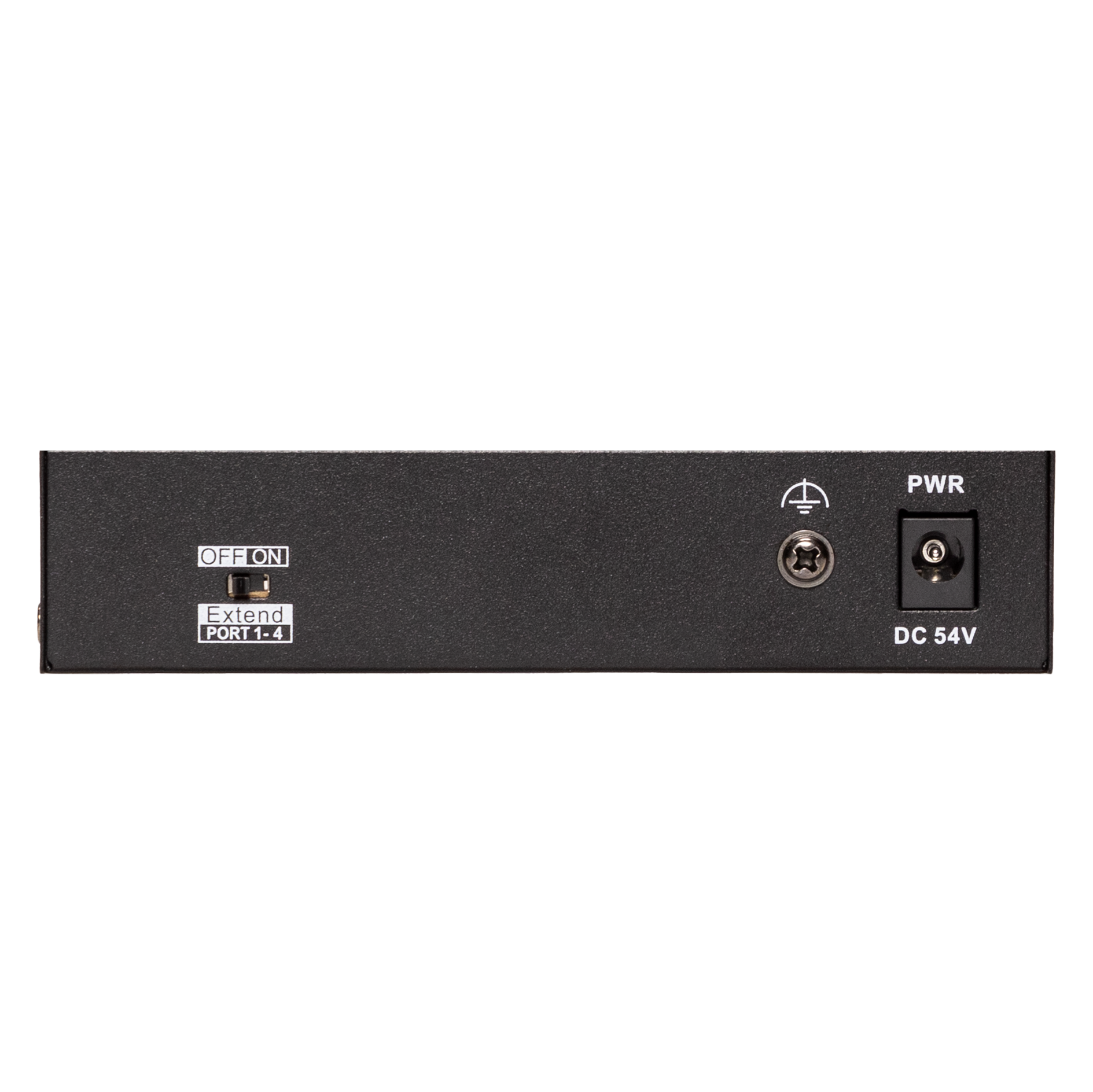

NS-0106P-45(B) Rear Panel
Technical Specifications
Everything at a Glance
General
Housing: Metal, fan-free
Dimensions: 121.10 × 27.60 × 83.10 mm
Net Weight: 0.2 kg
Installation: Desk-mounted
Operating: 0°C to 40°C
Network
Ports: 4 × PoE + 2 × RJ45
Speed: 10/100 Mbps
Switching: 1.2 Gbps
Forwarding: 0.89 Mpps
MAC Table: 2K
Power & PoE
Input: 54 V DC, 0.92 A
Standard: IEEE 802.3af / 802.3at
Per Port: Up to 30 W
PoE Budget: 45 W
Surge: 6 kV
Compact Design
Built for Practical Deployment
A compact metal enclosure and fan-free design provide quiet, reliable operation without taking up unnecessary installation space.

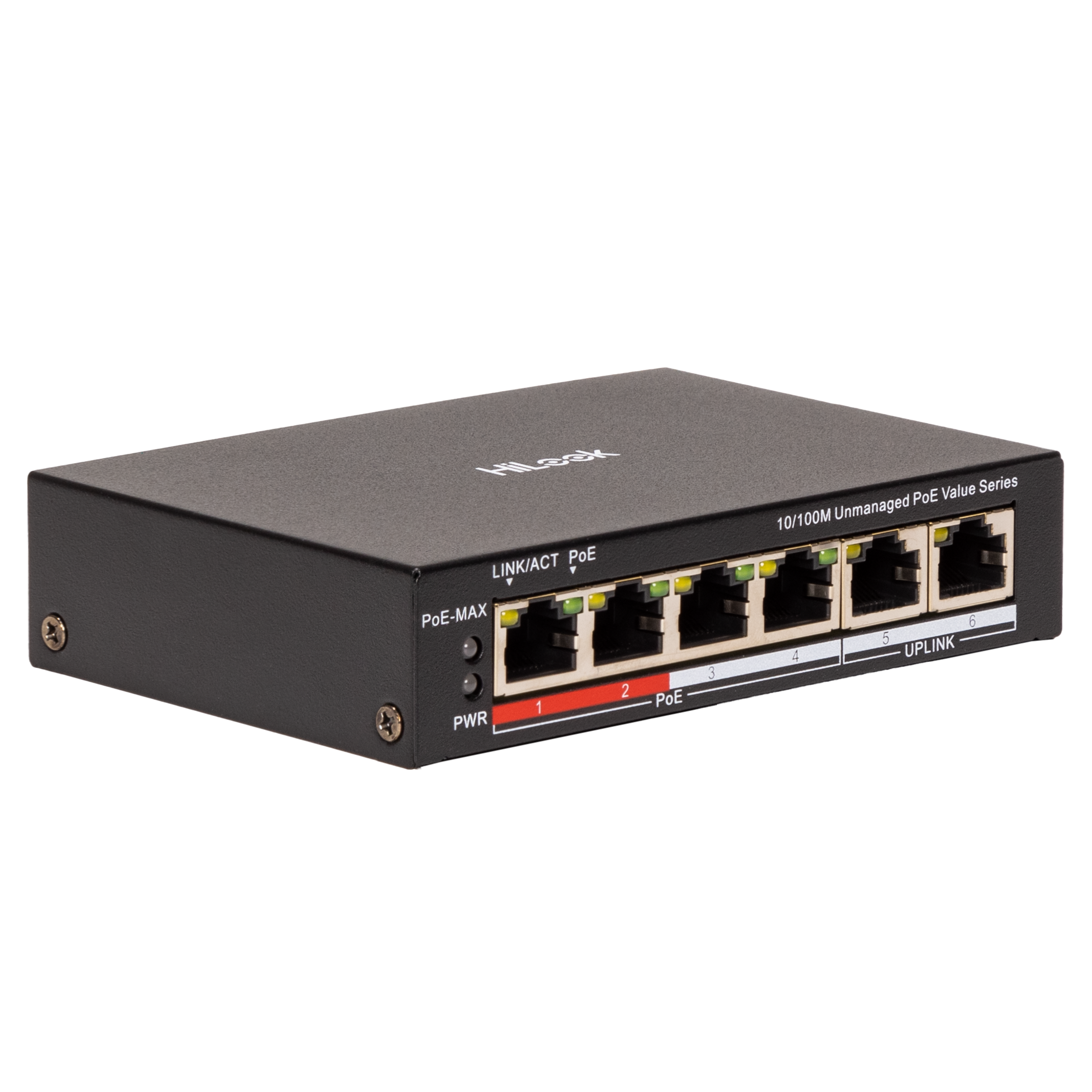

NS-0106P-45(B) PoE Switch
