Home > Cables & Adapters > USB Cables & Adapters > USB-C 100W & 240W Charging CBL > DYNAMIX 1m USB-C 240W PD Fast Charge Data Cable - USB 2.0 Data Transfer

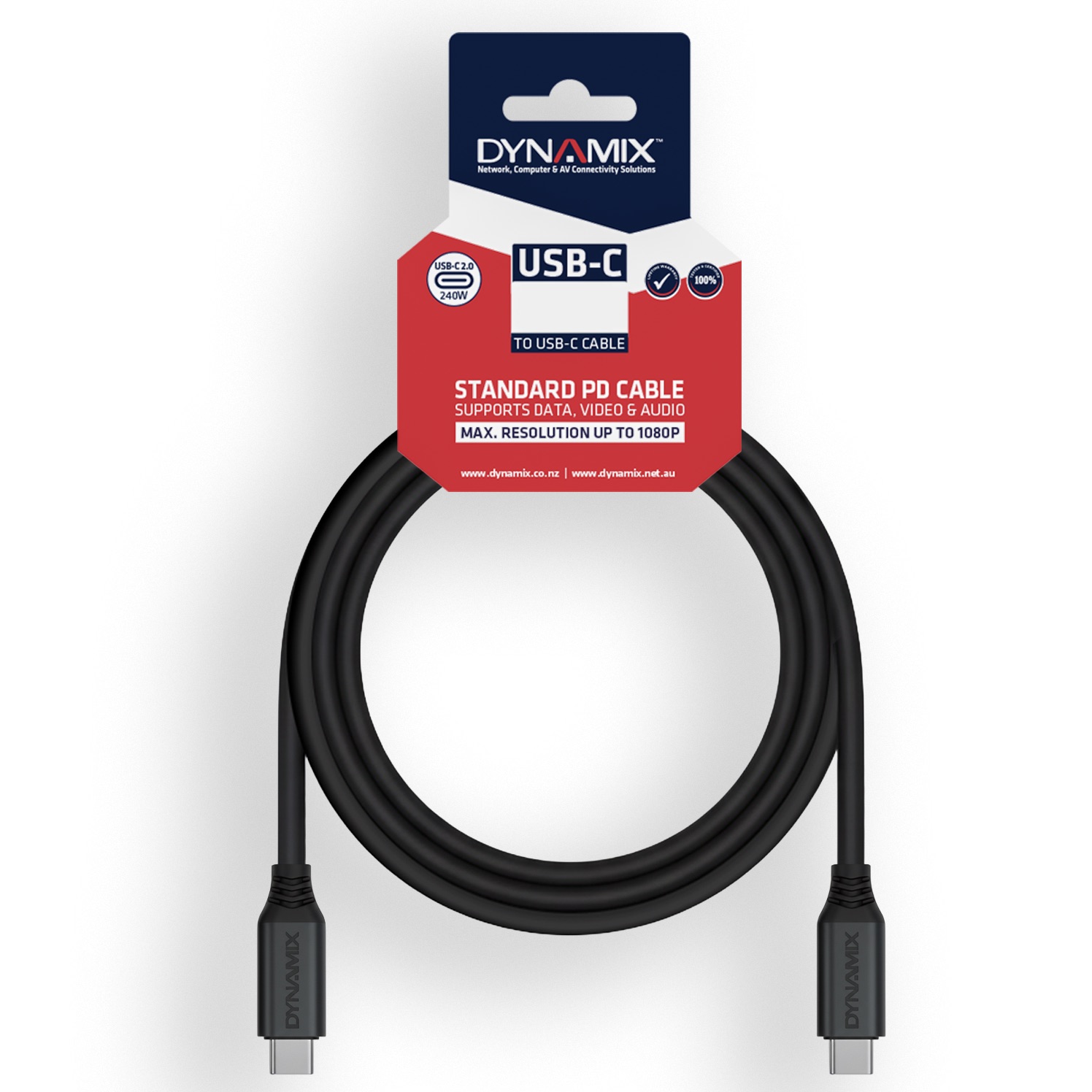

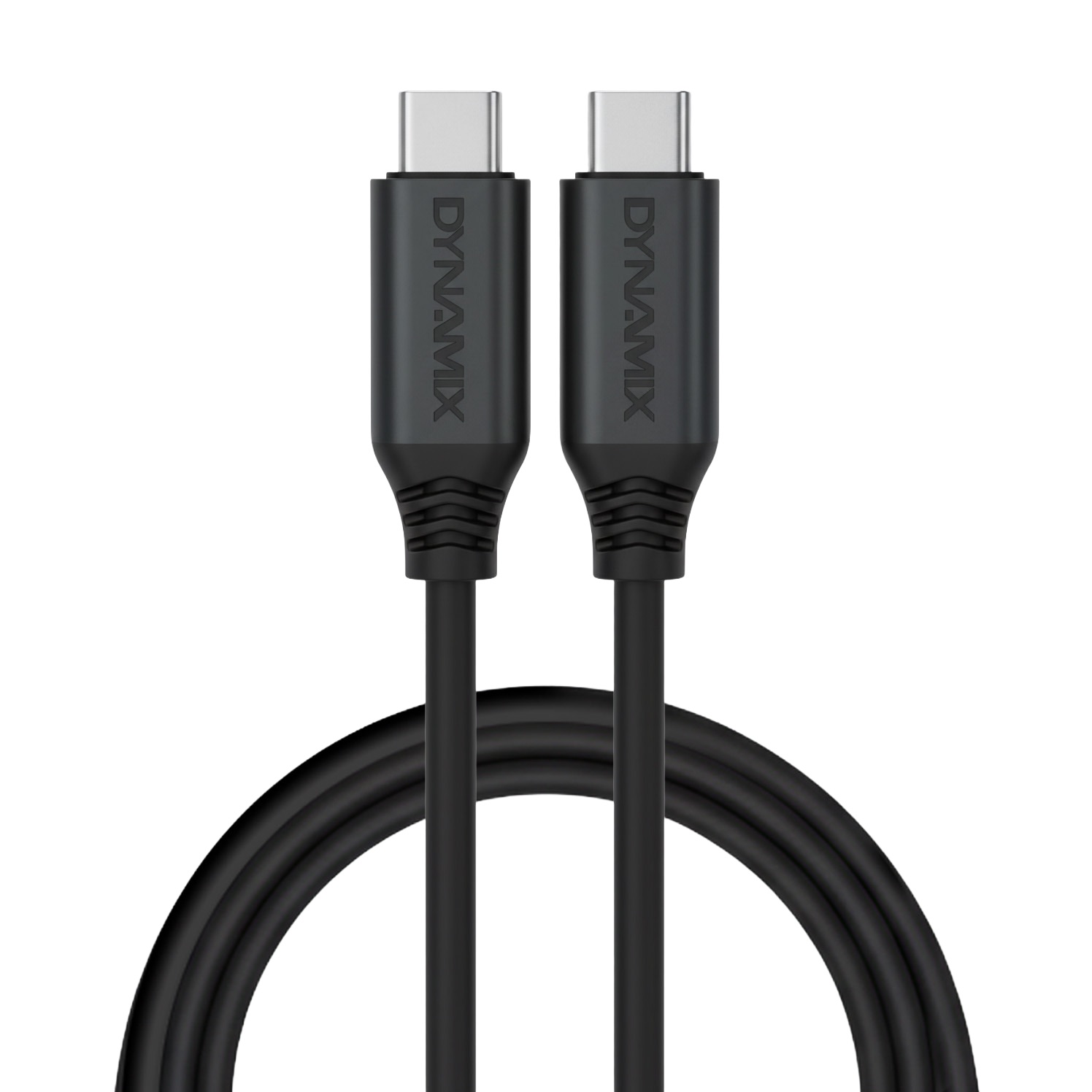

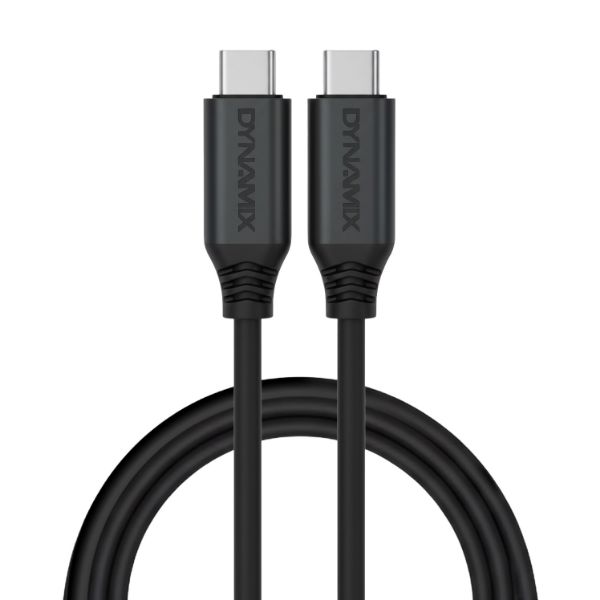

Picture of DYNAMIX 1m USB-C 240W PD Fast Charge Data Cable - USB 2.0 Data Transfer
Picture of DYNAMIX 1m USB-C 240W PD Fast Charge Data Cable - USB 2.0 Data Transfer Picture of DYNAMIX 1m USB-C 240W PD Fast Charge Data Cable - USB 2.0 Data Transfer Picture of DYNAMIX 1m USB-C 240W PD Fast Charge Data Cable - USB 2.0 Data Transfer Picture of DYNAMIX 1m USB-C 240W PD Fast Charge Data Cable - USB 2.0 Data Transfer

DYNAMIX 1m USB-C 240W PD Fast Charge Data Cable - USB 2.0 Data Transfer

Model: C-U20-CC-1




DYNAMIX 0.5m Standard USB-C to USB-C Cable
0.5 METRE • STANDARD
USB-C 2.0 CHARGE + DATA
240W
SERIOUS POWER. SIMPLE USB-C.

High-capacity USB-C charging with reliable USB 2.0 data transfer through one durable cable.

C-U20-CC-0-5
USB-C MALE TO USB-C MALE
0.5M
E-MARKER CHIP
POWER
240W
DATA
480Mbps
SUPPLY
48V/5A
CONTROL
E-MARKER
240
HIGH-POWER USB-C
CHARGE MORE. CARRY LESS.


The DYNAMIX C-U20-CC-0-5 is a 0.5 metre USB-C to USB-C cable designed for high-performance charging & reliable data transfer. Supporting up to 240W Power Delivery, it is ideal for laptops, docking stations & other high-demand USB-C devices. USB 2.0 data transfer supports speeds up to 480Mbps.

BUILT FOR EVERYDAY POWER
CLEAN. SIMPLE. POWERFUL.
DYNAMIX
DYNAMIX Standard USB-C Cable
240W
POWER DELIVERY
480
Mbps DATA
4.8mm
PVC JACKET
INTELLIGENT POWER CONTROL
POWERED BY E-MARKER.
DYNAMIX
DYNAMIX USB-C cable internal electronics
48V
SUPPLY VOLTAGE
5A
HIGH-CURRENT DELIVERY
Integrated E-Marker electronics support high-power USB-C charging up to 240W.
BUILT FROM THE INSIDE OUT
SHIELDED FOR RELIABILITY.
100%
ALUMINIUM / MYLAR
FOIL COVERAGE
65%
TINNED COPPER BRAID
MINIMUM COVERAGE

DURABLE BLACK PVC JACKET

TINNED COPPER BRAID

ALUMINIUM / MYLAR FOIL

TINNED COPPER CONDUCTORS
TWO CONNECTOR STYLES
SAME PERFORMANCE. YOUR STYLE.

Standard & Premium models share the same charging, data & cable performance. The difference is the connector housing design.

DYNAMIX Standard Connector
CURRENT STYLE
STANDARD
Black moulded connector housing
DYNAMIX Premium Connector
ALSO AVAILABLE
PREMIUM
Metallic premium connector housing
TECHNICAL SPECIFICATIONS
0.5M STANDARD SPECIFICATIONS.
DYNAMIX
C-U20-CC-0-5
Length
0.5 Metres
Connector
USB-C Male to USB-C Male
Data Standard
USB 2.0
Data Rate
Up to 480Mbps
Power Rating
Up to 240W
E-Marker
Included
Supply Voltage
DC 48V / 5A
Power Consumption
≤0.5W
Operating Temp.
-40°C to +70°C
Jacket
Black PVC
Outer Diameter
4.8 ± 0.15mm
Contact Plating
Gold Plated
Conductor
Tinned Copper
Shielding
100% Al/Mylar + 65% Min Tinned Copper Braid
Insulation Resistance
≥5MΩ
Conductor Resistance
≤3Ω
Compliance
UL AWM 2725 • RoHS • REACH • TSCA
ALSO AVAILABLE
CHOOSE YOUR STYLE & LENGTH.

Available with Standard or Premium connector housings in 0.5m, 1m, 1.5m & 2m lengths.

STANDARD CONNECTOR • C-U20-CC
PREMIUM CONNECTOR • C-U20-CCPR

240W POWER. USB-C SIMPLICITY.
